Sugino Grand Mighty and Sugino 75

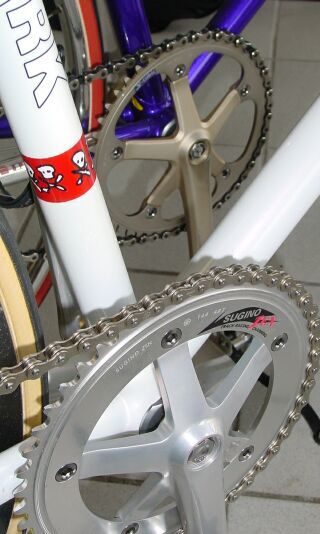

tcr-su~3.jpg - 41.2 K Sugino 75 cranks are available in arm lengths of 165, 167.5, 170, 172.5 and 175 mm., configured to fit 144 mm. bolt circle pattern chainrings. Color options: silver or black. The arms are designed for ISO spindle tapers and can be installed on either the standard Sugino 75 or "Superlap" bottom brackets.

The "Grand Mighty" crank is an even further upscale version of the Sugino 75 and mates with the same bottom bracket options as the model 75. Grand Mighty cranks are anodized in a pale champagne color. Grand Mighty cranks are available in lengths of 163, 165, 167.5, 170, 172.5 and 175 mm.

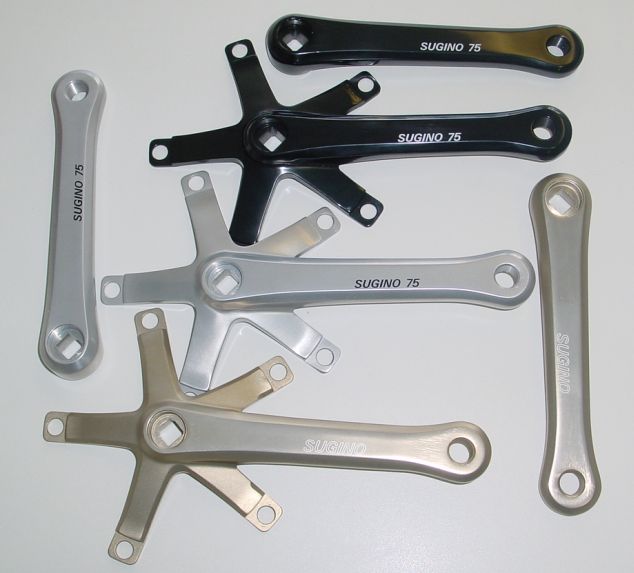

tr-arms-sug-all.jpg - 43.27 K


Back To Top of Page
Track Components
Index of Pictures
Track Catalog Main Page
logo6b.gif - 6.29 K

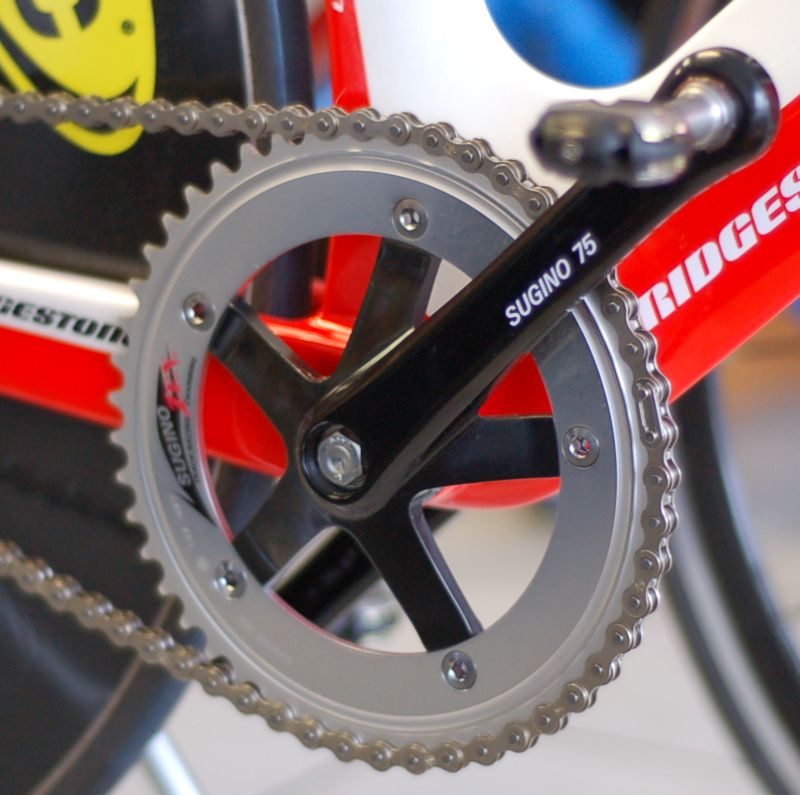

tcr-sug75blk_zen.jpg - 143.6 K
