BUSINESS CYCLES: Track Racing Bicycles and Frames: Pinarello Pista, Pinarello XTRACK FP, Montello Pista, Prince Pista

XTRACK FP
Pinarello Pista series full carbon frame and fork. Monocoque main triangle with bonded chainstays and seat stays. New Onda X-track full carbon fork and rear seatstay. Front and rear carbon forkends are faced with steel veneers. Developed for those national teams sponsored by Pinarello and the 2008 Olympics. Offered in two versions:

XTRACK FP Madison - High modulus carbon fiber (12k outer weave pattern).
XTRACK FP Sprint - High modulus carbon fiber (3k outer weave pattern). The Sprint version is a special order item, allow approximately two months for delivery.

Xtrack Sprint pictured above, on display now in the shop.

Frame, fork, headset and carbon seatpost - $3495.00

Pinarello XTRACK FP Frame Geometry:

Size (center to center)	Top tube	Seatmast°	Head tube°	Front-center	Fork Offset
42.5	50	75.25	75.50	53.3	38
46	52	75.25	74.50	55.2	38
51.5	53.6	74.50	74.50	56.4	38
53.2	55.2	74.50	74.50	57.9	38
55	56.7	74.50	74.50	59.4	38
58	58.2	73.75	74.50	60	38

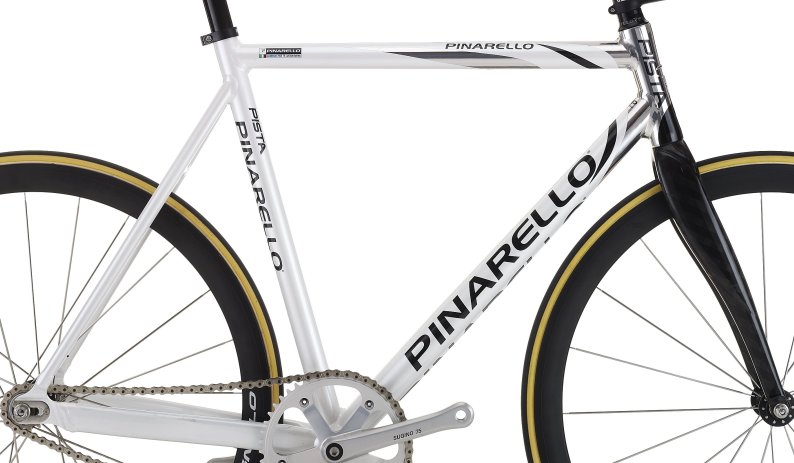

PISTA ALUMINUM

Pinarello's 7005 T6 aluminum frame is paired with a new carbon track fork whose proportions and contours are derived from the elite XTrack model shown above. Steel veneers face the rear forkends to help protect from them from being damaged by wheel fasteners.

Available only as a complete bike with parts kit that includes Sugino 75 track crank, Cane Creek Volos tubular track wheels and Pinarello's M.O.st seatpost, stem, handlebar and saddle. - $1995.00

Color Options: ~~white or~~ blue.

Pinarello Aluminum Pista Frame Geometry:

Size (center to center)	Top tube	Seatmast°	Head tube°	Front-center	Fork Offset
46	520	75.25	74.50	55.2	38
51.5	53.6	74.50	74.50	56.4	38
53.2	55.2	74.50	74.50	57.9	38
55	56.7	74.50	74.50	59.4	38
58	58.2	74.5	74.50	60	38
